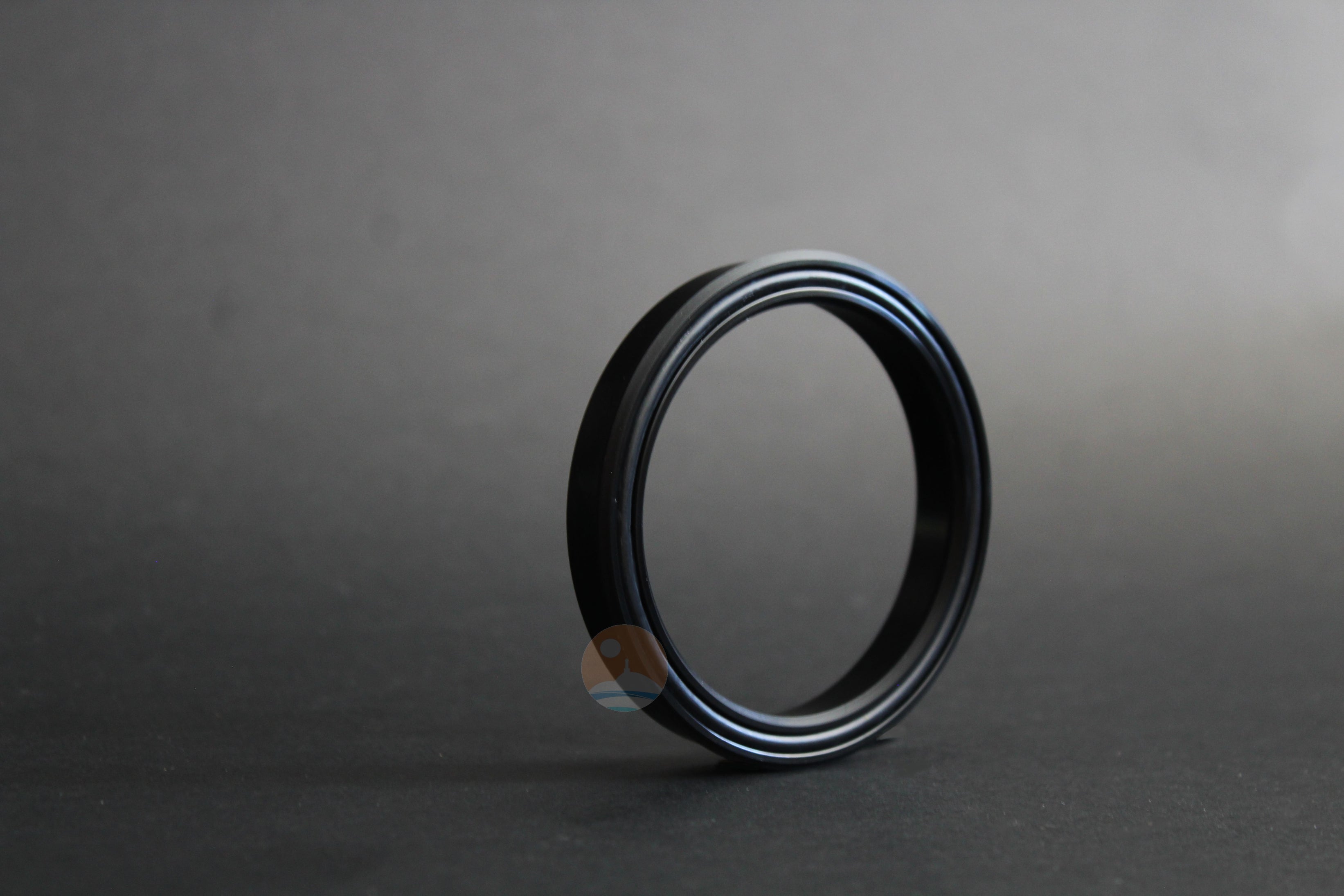

| Sello Tipo U con Refuerzo O "Polipack"
TIPO A
| Material |
TPU duro 95 + O-Ring |
| Presión de trabajo |
≤ 35 MPa |
| Temperatura de trabajo |
-35°C a +80°C |
| Velocidad superficial |
≤ 0.8 m/s |
| Fluido compatible |
Aceite mineral |
| Resistencia a la abrasión |
35 mm³ |
| Deformación por compresión |
30% |
| Resistencia a la tracción |
50 MPa / 7252 psi |
| Resistencia al desgarro |
140 N/mm / 799 pli |
| Precio habitual
Desde $7.700,00
Precio de venta
Desde $7.700,00
Precio habitual
| Mi tienda | SELLO HIDRAULICO POLIPACK TIPO U |
ID - ED - H
1/2 X 3/4 X 1/8,1 X 1-3/8 X 3/16,1 X 1-1/2 X 1/4,1-1/8 X 1-3/8 X 1/8,1-1/4 X 1-1/2 X 1/8,1-3/8 X 1-5/8 X 1/8,1-3/8 X 1-3/4 X 3/16,1-3/4 X 2-1/8 X 3/16,1-5/8 X 2 X 3/16,1-1/2 X 1-7/8 X 3/16,1-1/2 X 1-3/4 X 1/8,1-1/4 X 1-5/8 X 3/16,1-7/8 X 2-1/4 X 3/16,1-3/4 X 2-1/4 X 1/4,2 X 2-3/8 X 3/16,2 X 2-1/2 X 1/4,2-1/4 X 2-5/8 X 3/16,2-1/8 X 2-1/2 X 3/16,2-1/2 X 2-3/4 X 1/8,2-1/2 X 2-7/8 X 3/16,2-3/8 X 2-3/4 X 3/16,2-1/2 X 3 X 1/4,2-3/4 X 3-1/8 X 3/16,2-5/8 X 3 X 3/16,2-7/8 X 3-1/4 X 3/16,2-3/4 X 3-1/4 X 1/4,3/4 X 1 X 1/8,3/4 X 1-1/8 X 3/16,3 X 3-3/8 X 3/16,3-1/8 X 3-1/2 X 3/16,3-3/8 X 3-3/4 X 3/16,3-1/2 X 3-7/8 X 3/16,3-5/8 X 4 X 3/16,3-7/8 X 4-1/4 X 3/16,3-3/4 X 4-1/4 X 1/4,4 X 4-3/8 X 3/16,4 X 4-1/2 X 1/4,4-1/8 X 4-1/2 X 3/16,4-3/8 X 4-3/4 X 3/16,4-1/2 X 4-7/8 X 3/16,4-1/2 X 5 X 1/4,4-3/4 X 5-1/8 X 3/16,4-3/4 X 5-1/4 X 1/4,5-1/2 X 6 X 1/4,5/8 X 7/8 X 1/8,6-1/2 X 7 X 1/4,7/8 X 1-1/8 X 1/8,7/8 X 1-1/4 X 3/16,9-1/2 X 10 X 1/4
|
